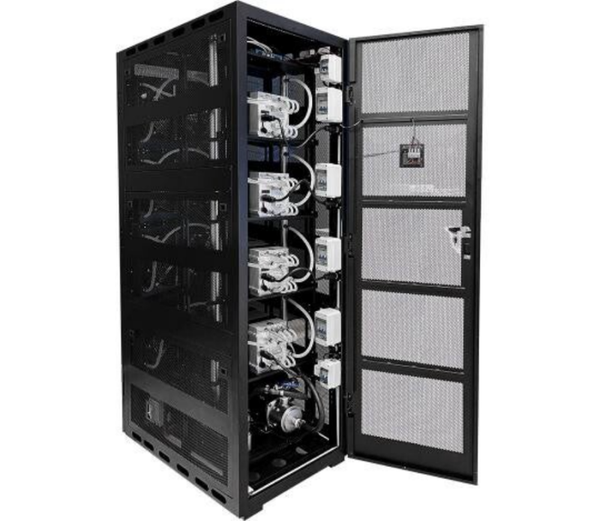

ANTRACK V1

Specification Details For ANTRACK

Product Glance

Model ANTRACK

Version V1

Capacity 4 units ANTMINER (S21 Hyd.)

Maximum load,kW24

Detailed Characteristics Hardware configuration

Size (width*height*depth),mm600*2000*1000

Net weight, kg300

Network connection modeEJ45 Ethernet 10/100MPower supply Power supply AC input voltage, Volt^(1-1)380~415

Power supply AC input frequency range, Hz50~60

Power supply AC Input current, Amp^(1-2)80Environment requirements

Ambient temperature, °C15~45Water flow, L/min32.0~40.0

Water pressure, bar≤3.5

Working fluid^(1-3)Deionized water/Pure waterLiquid PH8.5~9.5

Storage temperature, °C-20~70

Operation humidity(non-condensing), RH10~90%

NOTE:

(1-1) Caution: Wrong input voltage may probably cause miner damaged

(1-2) Three-phase AC input.

(1-3) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.
